REX Clean Power Core™ · MODULE / PWR
Cleanroom power. Without the cord.
REX Clean Power Core™ is a scalable portable power supply designed for cleanroom qualification instruments. INITIUM, VIGOR and VALIDUS provide cordless operation in classified environments, with a cleanable stainless enclosure and HEPA-filtered ventilation. No trailing cables across cleanroom floors, no hunting for sockets and no interruptions mid-sequence.
- +Cordless instrument operation
- +Cleanable stainless enclosure
- +HEPA-filtered ventilation with replaceable filter
- +Docks directly on the Clean Cart
- +Works standalone, too
Tap a point to ask about that part
Runtime · one charge · INITIUM
30 W
average draw
9 h 32 min
runtime
≈572
1-min samples
A normal classification samples for 1 min, then idles for 1 min. At 50 W while sampling and 10 W at idle, that averages 30 W — about 9 h 32 min on the 286 Wh REX Clean Power Core™, roughly 572 one-minute sampling points without a wall socket. Estimated; actual runtime varies with instrument and duty cycle.
REX Clean Power Core™ · Platform
Power that grows with you.
Cleanroom qualification requirements are rarely identical. Some workflows require independent power for a single portable particle counter. Others require longer runtime, additional instruments or significantly higher power.
REX Clean Power Core™ is designed around that reality — a cleanroom power platform engineered for mobile qualification workflows, not a consumer power station in a stainless box.
Choose the power level that matches the way you work today — with the ability to step up as your requirements grow.
One platform · Three power levels
Built for what you need today. Ready for what comes next.

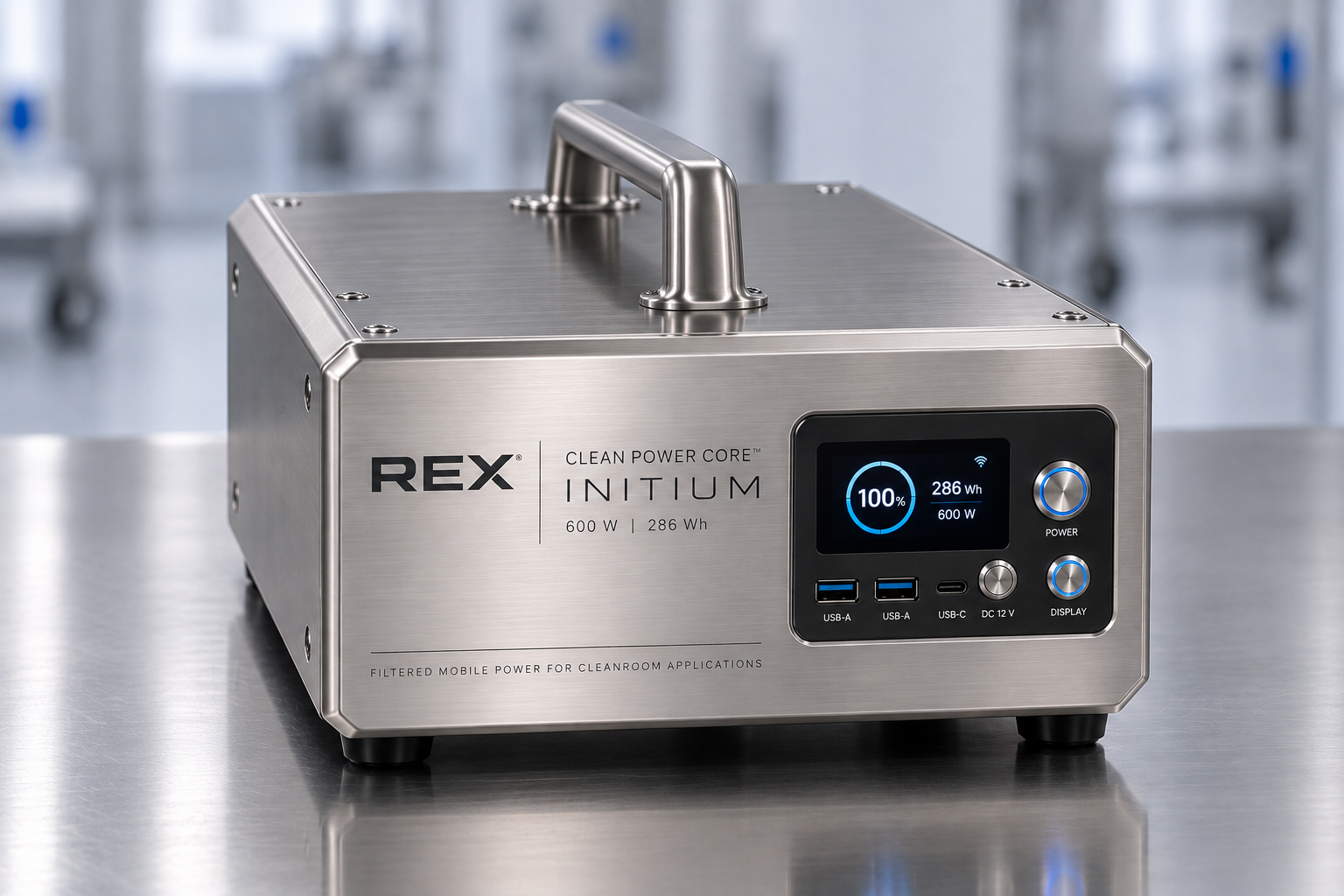

INITIUM
Essential clean power.
The entry point into the Clean Power Core platform — the natural starting configuration for many REX Clean Cart™ users.
Everything you need. Nothing you don't.
Designed for
- Portable particle counters
- Routine cleanroom qualification
- Mobile measurement equipment
- Short to medium sessions
- Moderate power requirements
Compare the levels
Side by side.
| Specification | INITIUM | VIGOR | VALIDUS |
|---|---|---|---|
| Nominal energy | 286 Wh | 572 Wh | 858 Wh |
| Relative capacity | 1× | 2× | 3× |
| Rated AC output | 600 W | 600 W | 600 W |
| Surge / X-Boost | up to 1200 W | up to 1200 W | up to 1200 W |
| Battery technology | LiFePO4 · 3000 cycles to ≈80% | LiFePO4 · 3000 cycles to ≈80% | LiFePO4 · 3000 cycles to ≈80% |
| Energy configuration | Integrated 286 Wh | Integrated 572 Wh | Integrated 858 Wh |
| Battery-system weight | 4.7 kg | ≈8.2 kg | ≈10.5 kg |
| Positioning | Essential mobility | Extended runtime | Maximum independence |
| Runtime · 30 W avg (50 W / 10 W, 1+1 min) | 9 h 32 min | 19 h 04 min | 28 h 36 min |
| 1-min sampling points per charge | ≈572 | ≈1144 | ≈1716 |
All three levels share the same 600 W power architecture — moving up adds stored energy and runtime, not output power. Runtime uses the same model as the INITIUM example: nominal energy ÷ 30 W average draw. Estimates; actual runtime varies with instrument and duty cycle. Weights exclude the REX enclosure.
Your requirements may change. Your platform shouldn't have to.
- 01 — Today
A particle counter today.
The essential starting point for mobile cleanroom qualification.
INITIUM · 286 Wh
- 02 — Tomorrow
Additional instruments tomorrow.
More energy and extended runtime as your workflow expands.
VIGOR · 572 Wh
- 03 — Next
Longer qualification sessions next year.
Maximum energy for extended work and independence from mains power.
VALIDUS · 858 Wh
REX Clean Power Core™ is designed around a simple principle:
Start with what you need today.
Scale your independence as your requirements grow.
More energy · More runtime · More independence
REX Clean Cart™ + Clean Power Core™
Cut the cord.
Clean Power Core™ turns REX Clean Cart™ from a mobile equipment platform into a self-contained mobile qualification workstation. Move between measurement points without searching for outlets, running extension cables or interrupting the qualification workflow.
Mount it. Power it. Measure. Move.
Example pairings — not requirements
- Particle counter→ INITIUM
- Particle counter + accessories + extended runtime→ VIGOR
- Multiple / high-power qualification instruments→ VALIDUS
